GUI Tutorials

Here, we walk through the main steps to use PatchView.

Loading data

Patchview provides multiple ways to import data.

import single file

Use the file browser to expand (click the arrow) directories. Once located the file (.dat, .abf for electrophysiology data; .asc for Morphological data), double clicking the file. The contents of this file will be represented as a hierarchical tree in a tab named “Current tree” in the left panel. Click the arrow at start of the name to expand.

import multiple files simultaneously

Note: this method assume that you follow a naming convention: date-slice#-cell#. For example, 20220202s1c1.dat, means this file was recorded on date 2022/02/02 from slice 1 and cell 1.

Sometimes, you may record multiple cells from a single slice (check test data in testsdataconnection_tests). Each cell’s recording may be stored in a separate file. Or, they were stored in a single file. And You may also record multiple slices from a single day. The following method would enable you importing cells from a single slice (possibly in multiple files).

Right click the folder that contains data files, a context menu would pop out. Clicking “import files”, a dialog box with a dropdown list of each individual slice name and “All slice”. Selecting the former will load files from same slice. Selecting ‘All slices’ will load all files in the current folder.

An advantage of loading data in this way is that PatchView will try to sort series by their protocol. Some common protocols in a multi-patch experiment test for firing pattern, connection and spontaneous event. In Heka patchmaster, you can specify a unique label for each protocol: for example, ‘FP’ for firing pattern; ‘EPSP’ for excitatory post synaptic potential. PatchView would read those labels and sort each recorded series into corresponding tabs shown in the first middle panel. Currently three tabs are available: “Firing pattern”, “Connection”, “Spontaneous”. Once data is loaded and sorted, the context menu provides entry point to additional analysis (see below).

GUI interactions

Left button: Left mouse button have two modes of interaction: Rect mode mouseMode1 and Pan mode mouseMode2.

  • Rect mode: Left click and drag a rectangle around the region of interest to zoom in.

  • Pan mode: Interacts with items in the scene (select/move objects, etc). If there are no movable objects under the mouse cursor, then dragging with the left button will pan the scene instead.

Rect mode is default. Click the corresponding icon in the toolbar (far right column in GUI) to switch between those two modes.

Right Button:

  • Right button drag: Scales the scene. Dragging left/right scales horizontally; dragging up/down scales vertically (although some scenes will have their x/y scales locked together). If there are x/y axes visible in the scene, then right-dragging over the axis will _only_ affect that axis.

  • Right button clicks: Clicking the right button in most cases will show a context menu with a variety of options depending on the object(s) under the mouse cursor.

Firing Pattern analysis

single series FP analysis

Right clicking the Series in the “Current tree” tab, choose “Firing pattern analysis”. This will trigger firing pattern analysis for the whole series. The results are shown in two formats in the “Firing pattern” tab:

  • the top panel shows aligned spike waveform in the first 16 sweeps that have at least one spikes.

  • the bottom left panel have three tabs. Each tab holds a table for sweep-wise, spike-wise and cell-wise features.

multiple series FP analysis

Load all series of interests using method described in import multiple files simultaneously section. Invoke firing pattern analysis from the context menu of the “Firing patterns (Batch)” tab in the first middle left panel. This will perform firing pattern analysis for all (“batch”) series listed .

Monosynaptic connection detection

Same loading method as the multiple series FP analysis. If the files are successfully loaded (see figure below), there should be a list of files of firing pattern in the Connection tab. Invoke Synaptic connections (Batch) from the context menu of the Connection` tab in the first middle left panel. After a few seconds, GUI would automatically switch to Connections view to show traces with possible connection.

Alternative text

Postsynaptic event (PSP/PSC) analysis

Load file that has spontaneous event series. Right click the series of interest to invoke context menu. Left click “Spontaneous event analysis” will load the series and activate the “Event detection” tab.

The top two panels show the original trace (left) and template or detected events (right). The bottom left panel have several tabs, which hold parameters widget and actionable buttons. Major operations are done through this panel. The bottom right panel show tables of various intermediate results and figures.

To start, activate the “Preprocessing” tab at the bottom left panel. This tab enables select sweep and traces within currently loaded series. It also has various parameters for preprocessing.

Specify templates

Next, activate “Template” tab. Move cursor into the left upper panel to specify several typical events as template. See the following picture for how to do this. Once templates are collected, click “Fit” in the tab to get a bi-exponential fit of the averaged event. The top right panel will now show the averaged the template and its fit together with time constant of rising and decay phase time constants. The “Template Fit” tab in the bottom right area will represent extra information about the fit.

Alternative text

detect events

Once the template fit is finished, activate “Peak detection” tab. Then click “Detect current sweep” button to analyze events for current sweep, or “Detect events for all sweeps” for all sweeps. See the following graphic guide.

Alternative text

visualize and manually curate events

Alternative text

Postprocessing and exporting

The “Event postprocessing” tab summarize the results with event histograms. The wave forms and tables can also be exported from here.

Alternative text

Morphological data

Patchview currently only support neurolucida ASC files. These files should be listed in the file browser panel. Double clicking the file would load the file. Visualization and further analysis results are shown in the Morphology tab.

Dependent on the content of the file, Patchview can perform:

  • pairwise distance of multiple somas: this is automatically done if the reconstruction has multiple somas in it (check the test file: test_multiSoma.ASC)

  • Update cell names: this can be done for a multi-soma file. The Name column in the Summary table can be edited. After the editing, clicking Update cell names will update the Pair names in the pairwise distance table in Distance (um) tab.

  • Sholl analysis: if the reconstruction has at least one neurite, this will perform Sholl analysis (counting neurite numbers in a ring from certain soma distance). A line plot (count vs distance) is shown in the Figures tab. Try test.ASC.

Alternative text

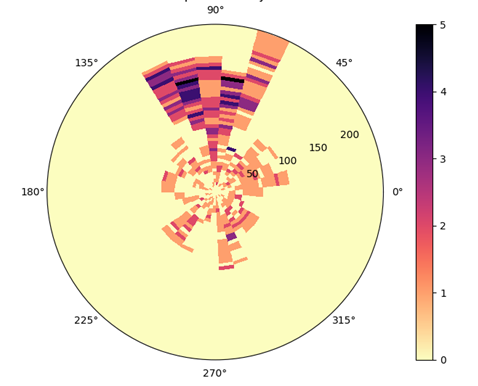

  • Density analysis: Visualizing neurites density in either Cartesian or polar coordinates.

Alternative tex Alternative text
  • Distance to Pia: if the reconstruction contains a entry labeled “Pia” (check the test file: test_multiSoma.ASC), this will measure Euclidean distance from the center of a soma to the Pia. Measured results are shown in the Distance to Pia column in Summary table.

Alternative text

Note: the figure sometimes (more so under Ubuntu) does not automatically refresh. If it happens, drag the border between upper and lower panels to manually refresh.

Toolbar items

Simple explanation for each icon will be show as tooltip when Hovering over each icon.

The first tool item mouseInteract is to switch mouse interation mode as explained above.

The second tool item sliceview is to load slice imaging into the tab “Slice view”.

The third CR and fourth item corr is to calculate correlations values in a multi-patch experiment: an index to quantify voltage dependent pair-wise Pearson correlation between raw voltage traces within a user specified time window. Example images below could be reproduced by doing CR with the test data test_couplingRatio.dat (Series2)

Note: significant coupling is highlighted with red title (from chan 8 to chan2 in this case).

Alternative text

Exporting data

File menu provides two exporting options. Export .pkl exports currently selected series into a Python pickle object. Export .NWB exports into neurodata-without-borders format.
